Fiber Optic Hybtid Adapter Male to Female FC SC Fiber_optic_adapters

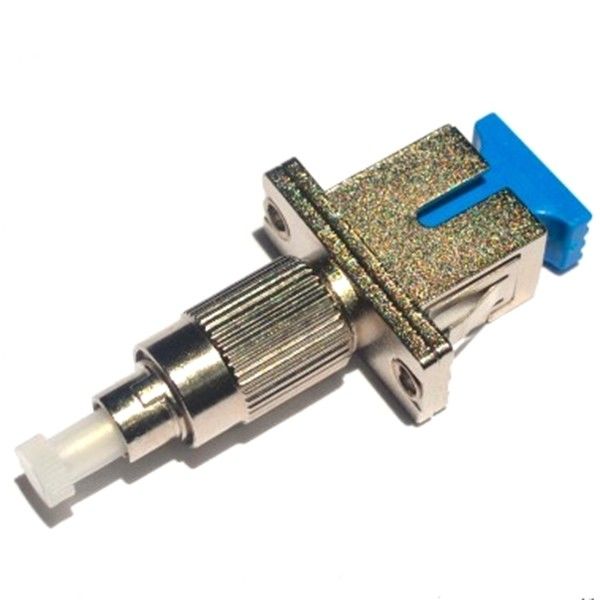

Gambar besar : Fiber Optic Hybtid Adapter Male to Female FC SC Fiber_optic_adapters

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HYG
Nomor model:	HYG-AD-FC-UPC-MM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 Potongan / potongan
Harga:	$5.00 - $32.50 / Piece
Kemasan rincian:	Kotak 25pc / Blister, 1000pcs / ctn
Menyediakan kemampuan:	100000 Sepotong / Potongan per Minggu sc / apc fiber optic adapter / sma sc fiber optic adapter

Kontak

Detil Deskripsi produk

Tipe:	Adaptor Serat & Konektor	Jumlah Serat:	1.
Menggunakan:	FTTX	Jenis Adaptor:	FC, SC, LC, ST, E2000, MTRJ
Selesai:	PC, UPC, APC	Model:	SM, MM, SX, DX
diameter selubung (mm):	0.9 / 2.0 / 3.0	Kerugian penyisipan:	SM = <0,2dB
redaman refleksi:	PC> = 45 dB, UPC> = 50 dB, APC> = 65 dB	Bahan teleskopik:	keramik
Suhu penyimpanan:	-40 ~ 85 ℃	Pelabuhan:	Shenzhen

Fiber Optic Hybtid Adapter Male to Female FC SC Fiber_optic_adapters

sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter

Product characteristic

compatibility, repeatability

high precision size has good compatibility

resistance to friction ceramic casing

environmental stability good

card lock plug

provide separate ST type, SC type, FC type, LC type and so on many kinds of adapter

sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter

Application

any optical fiber connection

fiber to the home, optical fiber sensors, testing instruments, such as optical fiber point

technical parameters

material:ceramic

repeatability: ≥1000 times

insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB

compatibility: ≤ 0.2 dB

sc/apc fiber optic adapter/ sma sc fiber optic adapter/ sma st fiber optic adapter

Optical Parameter	W/Japanese Ceramic Sleeve	W/Chinese Ceramic Sleeve	W/P.B Sleeve
Insertion Loss	<0.1 dB	<0.2dB	<0.3dB
Durability	<0.10 dB typical change,1000 times	<0.2dB typical change,1000 times	<0.30 dB typical change,500 times
Operating Temp	-20~75°C
Storage Temp.	-40~85°C
