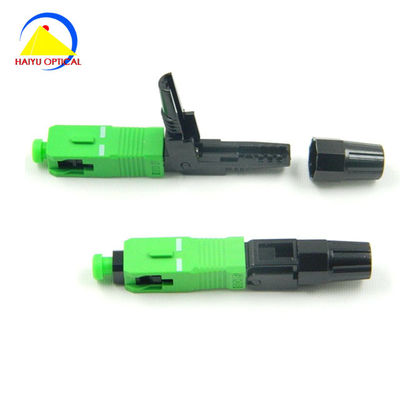

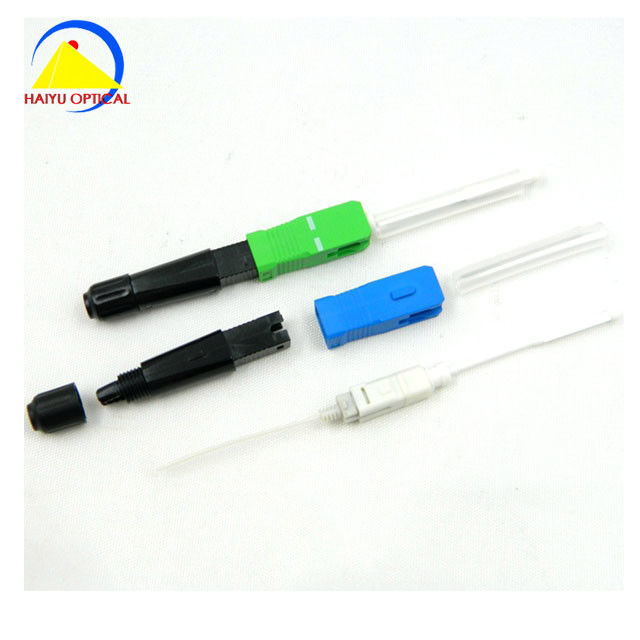

factory supply high quality fiber optic sc fast connector

Gambar besar : factory supply high quality fiber optic sc fast connector

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HYG
Nomor model:	HYG-501, Konektor Cepat SC APC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 Potongan / potongan
Harga:	$0.50 - $0.90 / Piece
Kemasan rincian:	Paket standar internasional
Menyediakan kemampuan:	10000 Potongan / potongan per Hari

Kontak

Detil Deskripsi produk

Tipe:	Lainnya, OEM	Warna:	hijau
Pengulangan:	0,2dB (1000 kali)	Suhu Operasional:	-40 ° C ~ + 80 ° C
Resistensi mekanis:	200-600g	Kerugian penyisipan:	≤0ddB
Sertifikat:	CE / ROSH / FC / ISO9001	Lead time:	1-5 hari
MOQ:	10 Pcs	Pelabuhan:	Shenzhen

factory supply sc/apc fast connector,fiber optic sc/apc fast connector,sc apc fiber optic connector with a high quality

Specifications

1 Precise Mechanical Dimensions
2 Low Insertion Loss, High Return Loss
3 Comply standard of IEC61754-4
4 High Repeatability

1 Introdution of Fast Connector:

Fiber Optic Fast Connector designed for FTTX is a new generation of fiber connector used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector.

2 Applications for Fast Connector:

Premise environments

Connections at the desk for LAN environments

Patch panels

Direct equipment termination

Fiber to the Subscriber (FTTx) applications

Repair/replacement requirements

Equipment test leads

3 Technical Specs for Fast Connector

Item	Unit	Parameters
Insertion loss	dB	≤ 0.3(1310nm & 1550nm)
Return loss	dB	≤ -40
Bare fiber strength	N	>5
Clad strength	N	>10
Tension	N	>50
Tensile strength (20 N)	dB	IL ≤ 0.2& RL ≤ 5
Mechanical ‎durability(500times)	dB	IL ≤ 0.2& RL ≤ 5
Operating Temperature	°C	minus 5~70
Storage Temperature	°C	minus 40 ~ +85
