Professional fibra optica PDLC connector optical fiber connector waterproof connector

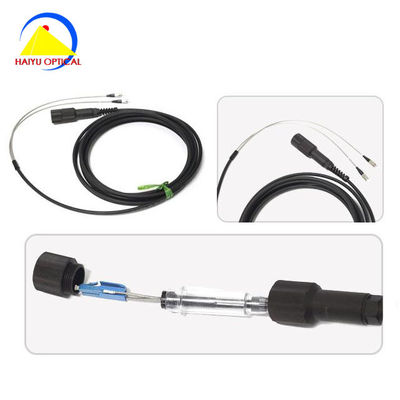

Gambar besar : Professional fibra optica PDLC connector optical fiber connector waterproof connector

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HYG
Sertifikasi:	CE; ISO:900
Nomor model:	Konektor HYG-PDLC, PDLC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 Potongan / potongan
Harga:	$3.00 - $10.00 / Piece
Kemasan rincian:	Kemasan standar ekspor
Menyediakan kemampuan:	1000000 Potongan / potongan per Hari

Kontak

Detil Deskripsi produk

Aplikasi:	FTTA	Fitur:	Tahan air
Pelabuhan:	Shenzhen	MOQ:	100 pcs
Uji:	Dipoles sangat baik dan 100% diuji	Panjangnya:	0,9 / 2,0 / 3,0m
Pengepakan:	Kemasan standar ekspor	Jenis serat:	G652D

Optical Cable Assembly DLC/PC waterproof cable assembly

Application

3G 4G base station used

Aerospace & Defence

Equipment diagnosis

FO sensor

FTTA ,FTTP, FTTX,WIMAX

BBU, RRU, RRH, LTE

Features:

The item used for outdoor RRU transmitting optical signal and remote fiber feeder etc;

saftly screwing connecting ;

Protection Level reach IP67 ;

Low insertion/return loss,steady optical transmitting.

Products Data

Item	Data
Insertion Loss	≤0.3dB
Mechanical life	500cycles
Working temperature	-40°C~+70°C
Storage temperature	-40°C~+70°C
Operating temperature	-10°C~+50°C
Protection Level	IP67
Tensile Data	Tensile between junction and fiber cable≥180N
Out shell inflaming retarding	UL94 V-0
Out shell Uvioresistant	UL 746C
Authentication	Meet with RoHS

7mm fiber cable

Item	Data
fiber	Singlemode G.657A2
Fiber diameter	7mm
Material & color for jacket	LSZH black
Tension member	Aramid fiber
Max. attenuation	≤ 0.4 dB/km at 1310nm ≤ 0.3dB/km at 1550nm
Tensile resistance(short term)	500N(no breakage)
Crush resistance(short term/long term)	1000N/100mm
inflaming retarding	IEC 60332-3
Temperature	-40~+70°C
Uvioresistant	PASS
Authentication	Meet wigh RoHS &UL
