Manufacturer fiber optical MTRJ,FDDI,ESCON,SMA,DIN,D4,Bare connector used in patch cord cable/ pigtails
1.Low insertion loss
2.OEM&ODM is available
3.Short delivery time
4.CE,ROSH,ISO 9001
MTRJ fiber connector feature
1) PC, UPC, APC multi skive project.
2) High return loss & low return loss
3) High reliability and stability
4) Available for both SM, MM, simplex and duplex
5) φ0.9mm, φ2.0mm, φ3.0mm cable optional
6) Superior qualified standard polishing;
7) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
8) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
9) Good exchange ability and good durability;
10) Available in fiber bunch, ribbon fan-out, pigtail available;
11) OEM&ODM are welcomed.
MTRJ fiber connector parameters:
ITEM | Technical Parameters |
Applicable for | Drop cable.Indoor cable |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode & Multi mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB or 0.2db (1310nm & 1550nm) |
Return loss | >50db or 60db |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m,
once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
MTRJ fiber connector application:
CATV, metro test equipment; FTTH;
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination.
Optical Distribution Frame
Optical Network Equipments

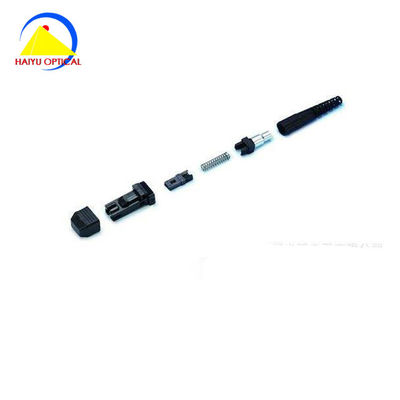

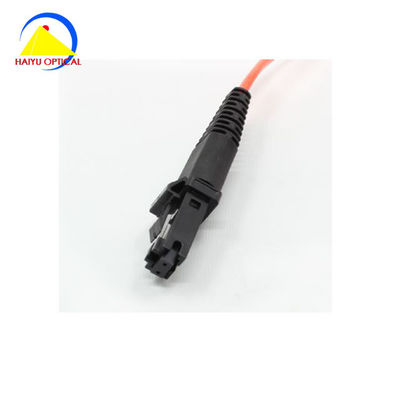

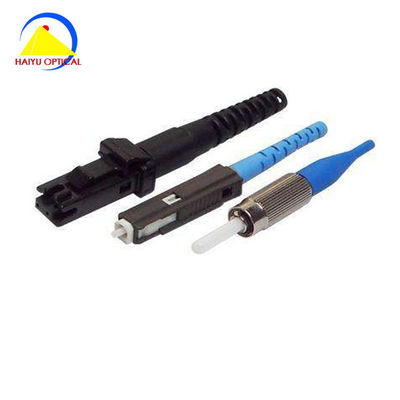

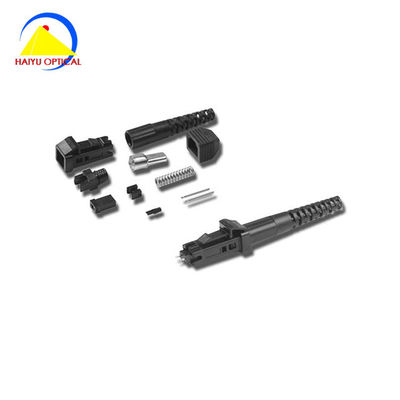

MTRJ fiber connector pictures:
